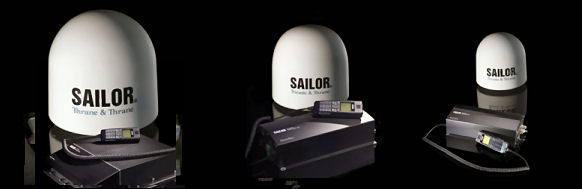

SATELLITE COMMUNICATION


SAILOR 6110 mini-C GMDSS Product description

  • The SAILOR 6110 mini-C is more than just a way to meet mandatory
    GMDSS requirements, because as part of the innovative SAILOR
    6000 Series, it is an integral part of a vessel’s communication
    system. The mini-C system features true triple functionality as it
    safely handles all GMDSS, SSAS and LRIT operation on board.

  • Highlights include:
    - First ever approved touch screen terminal for GMDSS use
    - External storage via SD card or USB flash disk
    - Innovative approach to cabling for simple networking and expansion
    - Accurate, reliable 50 channel GPS module that is also Galileo ready
    - ThraneLINK

  • Operation of the SAILOR 6110 mini-C is performed via the SAILOR
    6006 Message Terminal, which stands out as the world’s first touch
    screen, Wheelmarked GMDSS terminal. It provides a user-friendly
    multimedia style interface, making accessing its’ functionality
    straightforward, which in turn ensures the safe operation of the
    vessel’s IMO safety and tracking systems.

Product brochure

SAILOR 6140 mini-C Maritime Product description

  • The SAILOR 6140 mini-C Maritime is a sophisticated fully approved
    dedicated Vessel Management System (VMS) and tracking terminal.

  • The system is a single, self-contained and sealed terminal, housing
    both antenna and transceiver. This design approach has proven to
    be rugged and reliable especially for use aboard the harsh
    environment of a professional fishing vessel and with the terminal's
    50 channel GPS module and high gain omni-directional antenna,
    satellite fix and position are ensured even under the most adverse
    conditions.

  • With the SAILOR 6140 mini-C you can be sure that you are meeting
    requirements through a wide range of functionality, including: Data
    Reporting, Polling, Vessel Monitoring System, GeoFencing and
    Two-Way Messaging. Additional functionality including auxiliary
    control, power control and signal loss control have also been
    integrated with the SAILOR 6140 mini-C Maritime to ensure that
    should there be an issue and the system stops reporting, you will
    know about it immediately.
Product brochure

SAILOR 6150 mini-C Distress Product description

  • The SAILOR 6150 mini-C Distress is the most sophisticated, fully
    approved dedicated Vessel Management System (VMS) and
    tracking terminal available on the market. In addition to offering full
    VMS and tracking functionality, it also offers Non-SOLAS distress
    functionality and the reception of EGC messages and SafetyNet/
    FleetNet, which provides a significant boost to the safety of your
    vessel and crew.

  • The system is a single, self-contained and sealed terminal, housing
    both antenna and transceiver. This design approach has proven to
    be rugged and reliable especially for use aboard the harsh
    environment of a professional fishing vessel and with the terminal’s
    50 channel GPS module and high gain omni-directional antenna,
    satellite fix and position are ensured even under the most adverse
    conditions.

  • The SAILOR 6150 mini-C exceeds vessel tracking requirements
    through the integration of added safety calling and messaging
    functions. With the SAILOR 6150 mini-C you can also be sure that
    you are meeting requirements through a wide range of functionality,
    including: Data Reporting, Polling, Vessel Monitoring System,
    GeoFencing and Two-Way Messaging.
Product brochure

SAILOR Fleet One Product description

  • SAILOR Fleet One ensures reliable, global voice calling and Internet
    connectivity even on smaller boats that don’t have the room, or the
    budget, for larger satcom antennas.

  • SAILOR Fleet One enables data connectivity up to 150kbps and voice
    calling on a single line. SAILOR Fleet One may be small, but it packs
    enough power to deliver plenty of bandwidth for email, web browsing,
    social media, electronic documents/reporting and Machine-to-Machine
    (M2M) applications.

  • SAILOR Fleet One is designed to the same high standards as the
    existing SAILOR FleetBroadband product line, which uses the same
    Inmarsat-4 satellites as the Fleet One service.
Product brochure

SAILOR 150 FleetBroadband Product description

  • The SAILOR 150 FleetBroadband features the smallest, lightest
    FleetBroadband antenna to date, which enables simple user-
    installation, so smaller professional vessels and larger yachts with
    a requirement for reliable, high quality global internet and voice
    communication can enter the broadband era with a true IP solution
    for the first time.

  • Features:
    - Voice and data simultaneously
    - IP connection for e-mail and internet/intranet access
    - Rugged IP Handset
    - Digital satellite phone service with exceptional call quality
Product brochure

SAILOR 250 FleetBroadband Product description

  • The SAILOR 250 FleetBroadband harnesses the flexibility of
    Inmarsat’s next I-4 satellite service, FleetBroadband. It offers budget
    conscious fishing vessels, workboats and private yachts the
    opportunity to enter the broadband arena whilst providing the reliability
    and functionality expected of systems for large commercial vessels.

  • With data speeds up to 284 kbps from an antenna diameter less than
    30 cm, which weighs just 5 kg, this compact system provides
    performance and power at the right price point.

  • Features:
    - Send and receive e-mails and browse the web
    - Get access to remote networks securely
    - Send and receive large files
    - Access to voice and data simultaneously
    - Small size hardware
Product brochure

SAILOR 500 FleetBroadband Product description

  • The SAILOR 500 FleetBroadband is designed specifically for intensive
    use on board merchant and offshore vessels whilst being ideally
    suited to large fishing and workboat applications at the same time.

  • The SAILOR 500 FleetBroadband enables economical tracking,
    internet and e-mail access for operational and crew use. The high
    bandwidth and the per MB pricing allow for increased functionalities
    and usages, and result in a highly efficient communication and
    reduced cost compared to previous solutions in the market.

  • The SAILOR 500 FleetBroadband has a data speed up to 432 kbps
    from an antenna that weighs just 16 kg and is only 60 cm in diameter.

  • Features:
    - IP connection for e-mail and internet/intranet access, including
      secure VPN
    - ISDN
    - Voice and data simultaneously
    - Small size hardware
Product brochure

SAILOR 4300 L-Band Product description

  • The SAILOR 4300 Iridium Certus ConnectedTM terminal is the
    pinnacle of L-band satcom performance and reliability.
    It ensures that your link to the Iridium® NEXT network is always
    available so you can operate safer, smarter and more efficiently
    through the power of always available communication and digitally
    connected applications.

  • Available in bulkhead and 19” rackmount configuration, SAILOR 4300
    offers the most reliable connection to the Iridium® NEXT satellite
    network with speeds suitable for data-heavy applications including;
    videoconferencing, multi-user Internet/VPN, IoT and telemedicine,
    alongside regular usage including email, electronic forms/reporting
    and crew communication

  • SAILOR 4300 L-band is a cost-effective way to upgrade your vessel’s
    communications or to ensure a reliable backup solution for VSAT
    systems.
Product brochure

SAILOR 600 VSAT Ku Product description

  • The SAILOR 600 VSAT Ku is the most advanced 60 cm class
    Ku-band antenna available today. It offers unmatched reliability and
    link stability on a global basis1, opening the world of maritime
    broadband on VSAT to a wider range of vessels.

  • It is ideal for smaller vessels and because it weighs just 35 kg, it is
    possible to carry on board, making it especially relevant for
    installations where no cranes or forklifts are available.

  • A wealth of unique features enable unmatched ease and speed of
    installation, including a single cable between the antenna and below
    deck unit. P1dB compression over frequency means that antennas
    can be installed without contacting the NOC for commissioning.
    SAILOR antennas also feature Automatic Azimuth Calibration using
    modem Rx Lock, so they can find the ship's centreline automatically,
    saving time during installation and reducing errors.

Product brochure

SAILOR 800 VSAT Product description

  • The SAILOR 800 VSAT is a standardized high-performance 3-axis
    stabilized Ku-band antenna system with an 83 cm reflector dish.

  • The focus of the new SAILOR 800 VSAT is on RF performance, G/T,
    which is >18 dB/K - a value equal to or higher than most other 1m
    maritime VSAT antennae performance claims - yet it's much smaller
    and lighter. This performance makes the new 83cm antenna suitable
    for vessels that would normally specify a 1m antenna.

  • The SAILOR VSAT range enables you to operate two antenna
    systems on a single modem without the need for extra hardware to
    manage the feature; the integrated SAILOR VSAT antenna controllers
    manage the connection between satellite and modem. This simple
    dual antenna configuration ensures your vessel has a satellite
    connection even when there are obstructions in the way.
Product brochure

SAILOR 900 VSAT Ku Product description

  • The SAILOR 900 VSAT Ku is an advanced maritime stabilised Ku-band antenna system.

  • The SAILOR 900 VSAT Ku is an easy and quick to deploy three axis
    stabilized VSAT antenna with the highest RF performance in the 1m
    antenna class.

  • Every SAILOR 900 VSAT antenna system comes factory-tested,
    equipped ready-togo with standardized top quality RF components
    (8W BUC, LNBs, OMT/diplexer) - and only one cable between
    antenna and below-deck. The antenna is shipped fully balanced,
    configured and does not need work prior to installation.

  • The SAILOR 900 VSAT Ku can operate two antenna systems on a single modem without the need for an extra box to manage that feature. This requirement arises when the vessel needs a satellite connection even when there are obstructions in the way. The two SAILOR antenna controllers manage the connection between satellite and modem.
Product brochure

SAILOR 1000 XTR Ku Product description

  • Designed for maritime connectivity services operating on GEO
    satellites as well as forthcoming NGSO networks, the SAILOR 1000
    XTR Ku is one metre of pure innovation. It offers deep IoT capabilities
    which allow service technicians to take control with visibility into
    antenna health and performance on demand. Leveraging Cobham
    SATCOM’s unique R&D facilities and VSAT antenna leadership, the
    SAILOR 1000 XTR Ku is a technolgyleap that enables diverse global
    satellite connectivity services with unrivalled reliability for safer,
    greener and more efficient digital ship and fleet management.

  • SAILOR XTR™ is the cutting-edge technology platform at the heart of
    all new SAILOR antenna systems. Its new capabilities can maximise
    performance and optimise customer service, resulting in industry-
    leading up time on Ka- and Ku-band satellite networks in any orbit.

  • Technical features including a new type of control box located inside
    of the Above Deck Unit with a super-fast processor, new modular star
    network component topology, deep self-diagnostics capabilities and
    extended, highly secure remote access contribute to optimise every
    aspect of operation and management of SAILOR XTR™ antennas.
Product brochure

SAILOR 600 VSAT Ka Product description

  • The SAILOR 600 VSAT Ka is the smallest, lightest and most
    advanced 3-axis stabilised Ka-band antenna system for the Europe
    only THOR 7 High Throughput Satellite (HTS) satellite network from
    Telenor Satellite Broadcasting (TSBc).

  • Though SAILOR 600 VSAT Ka is a super light antenna, it has the
    ruggedness and reliability required of a profession-al maritime
    stabilised antenna system. Additionally, the low weight and compact
    form factor make it possible for smaller vessels to benefit from VSAT
    connectiv-ity, when before it may not have been an option because of
    the need for larger, heavier antennas.

  • Integrating SAILOR 600 VSAT Ka with the iDirect X7 Satellite Router
    is the smartest, most cost-effective way to access ground-breaking
    new high throughput satellite (HTS) services on THOR 7. Higher
    speeds, more reliability and class-leading installation time and cost
    savings, means this combination of state-of-the-art hardware and next
    generation services offers the ultimate support for business
    applications, vessel operations and crew welfare.
Product brochure

SAILOR 900 VSAT Ka Product description

  • SAILOR 900 VSAT Ka is an advanced 3-axis stabilized Ka-band
    antenna system designed for the Telenor THOR 7 satellite network.

  • The SAILOR 900 VSAT Ka is built to withstand the toughest sea
    conditions and is probably the fastest tracking antenna with its
    superior dynamic performance in all axes; roll, pitch and yaw.

  • The SAILOR 900 VSAT Ka offers a number of features for remote
    access and remote diagnostic including monthly statistics logging,
    SNMP traps, Syslog functionality and built-in e-mail clients that
    automatically can email historical logging of system performance.

  • Integrating SAILOR 900 VSAT Ka with the iDirect X7 Satellite Router
    is the smartest, most cost-effective way to access ground-breaking
    new high throughput satellite (HTS) services on THOR 7. Higher
    speeds, more reliability and class-leading installation time and cost
    savings, means this combination of state-of-the-art hardware and next
    generation services offers the ultimate support for business
    applications, vessel operations and crew welfare.
Product brochure

SAILOR 60 GX Product description

  • The SAILOR 60 GX is the smallest, lightest and most advanced
    antenna for the new Inmarsat Fleet Xpress High Throughput Satellite
    (HTS) maritime broadband service.

  • It is the fastest tracking antenna available in the 60cm class, with
    superior dynamic performance in all axes; roll, pitch and yaw.

  • Together, SAILOR GX and the SAILOR FleetBroadband make
    Inmarsat Fleet Xpress. This combination of high throughput Ka-
    band/GX and reliable L-band/FB provide a step-change in vessel and
    fleet operation by enabling access to a new wave of IT applications
    that support efficiency and reliability of equipment and processes on
    board. Fleet Xpress delivers high bandwidth connectivity while SAILOR
    60 GX ensures that it is always available on board so vessels can
    operate smarter through harnessing the power of connected maritime
    IT and technology.

  • The SAILOR 60 GX is delivered ready to install, with the included
    SAILOR GX Modem Unit (GMU) and SAILOR Antenna Control Unit
    (ACU) ensuring quality and reliability throughout the system.
Product brochure

SAILOR 100 GX Product description

  • The SAILOR 100 GX is an advanced 3-axis stabilized Ka-band
    antenna system designed for the Inmarsat Global Xpress® satellite
    network.

  • As with all SAILOR VSAT antenna systems, SAILOR 100 GX is light
    and compact. It uses a single cable between antenna and below deck
    equipment for RF, power and data, while advanced features such as
    Automatic Azimuth Calibration (home flag) and Automatic Cable
    Calibration significantly reduce installation time further.

  • SAILOR 100 GX features advanced Tracking Receiver technology
    that enables it to verify the right satellite in less than a second. This
    unique feature, tried and tested in the benchmark SAILOR
    FleetBroadband systems, ensures quick satellite acquisition at start-
    up and re-acquisition of the satellite in case of temporary blockage,
    after bad weather or poor signal strength.

  • SAILOR 100 GX ships with the original SAILOR GX Modem Unit
    (GMU), which works directly with SAILOR 500/250 FleetBroadband
    to form the cornerstone of the Inmarsat Fleet Xpress service.
Product brochure

SAILOR 1000 XTR Ka (Inmarsat) Product description

  • Integrating the best of SAILOR VSAT Technology and SAILOR XTR™,
    the new cutting-edge technology platform at the heart of all next
    generation SAILOR antenna systems, SAILOR 1000 XTR Ka
    represents the state-of-theart for leveraging the full capabilities of
    Inmarsat Global Xpress® today, and tomorrow.

  • The SAILOR 1000 XTR Ka’s advanced RF package with new Ka-band
    transceiver (XCVR) and feed horn supports dualpolarisation and wide-
    band Ka, making it ready to take advantage of Inmarsat’s future GX
    satellite constellations. It also features sophisticated Tracking
    Receiver technology to ensure fast satellite acquisition at start-up
    and after blockages caused by e.g. atmospheric conditions or vessel
    superstructure.

  • Technical features include the new XTR Antenna System Control
    Module located inside the Above Deck Unit (ADU) with a lightning-fast
    processor, enabling new modular star network component topology,
    deep selfdiagnostics capabilities and extended, highly secure remote
    access contribute to optimise every aspect of operation and
    management of SAILOR XTR™ antennas. Further developments
    include IoT protocols providing on-demand antenna health and
    performance data, and unique ‘in-dome’ Ethernet for simple integration
    of third-party devices such as cellular.
Product brochure

Copyright © A.B.E. Inženjering d.o.o., All Rights Reserved.    Valid XHTML 1.0 Transitional    Valid CSS!
