ECHOSOUNDER / SONAR


SKIPPER ESN100
- Navigation Echosounder
Product description

  • The SKIPPER ESN100 is a navigation Echo Sounder with a black box
    and a 9" touch display. The Echo Sounder graphics are continuously
    shown on the screen along with complete navigational details. Most
    of the functions are automatic, but it is also possible to run it in
    manual mode.

  • Single frequency 50 or 200 kHz

  • Colour 9" touch screen

  • Auto Gain

  • Auto TVG

  • Auto Range

  • Auto Power

  • Wheelmark
Product brochure

SKIPPER ESN200
- Navigation Echosounder
Product description

  • The SKIPPER ESN200 is a navigation Echo Sounder with a black box
    and a 9" touch display. The Echo Sounder graphics are continuously
    shown on the screen along with complete navigational details. Most
    of the functions are automatic, but it is also possible to run it in
    manual mode. The ESN200 is a dual frequency Echo Sounder.

  • Dual frequency

  • Colour 9" touch screen

  • Auto Gain

  • Auto TVG

  • Auto Range

  • Auto Power

  • Wheelmark

  • INS and IBS ready
Product brochure

Simrad S3009
- Navigation Echosounder
Product description

  • The Simrad S3009 Navigational Echosounder meets the requirement
    for reliable and accurate bottom tracking and depth recording on a
    wide range of commercial vessels.

  • The single-transducer S3009 system is cost effective, compact, and
    easy to install in tight spaces.

  • An S3009 Expanded system is also available, which adds the S5100
    transceiver to enable separate bow and stern transducers.

  • Industry standard 50 kHz and 200 kHz transducers.

  • The S3009 IMO Echosounder is designed to meet operational needs
    and SOLAS carriage requirements for workboats, passenger and
    merchant vessels. The S3009 meets type-approval standards
    including IMO resolutions A.224(VII) and MSC.74 (69) Annex 4.
Product brochure

FarSounder ARGOS
- 3D Forward Looking Navigation Sonars
Product description






  • FarSounder develops and manufactures 3D forward-looking sonar for
    vessels of all sizes. These systems are the only products on the
    market capable of generating a true, 3-dimensional image ahead of a
    vessel in real-time. Operational and reliable at navigationally significant
    ranges up to 1000M and speeds up to 25 knots, the Argos Series
    allows users to navigate safely and confidently. The system software
    is able to be integrated in many bridge systems.

    The FarSounder Argos Series has 3 options of innovative sonar technology:

  • The Argos 350 Forward Looking Sonar System is the solution for
    mid-sized yachts, research and survey vessels and unmanned
    vessels.
    Specifications include:
    - More compact and lighter transducer
    - Ability to detect objects in water column up to 350 meters ahead
    - Operational speeds up to 18 knots
    - Two installation types - easy fixed installation or hoist installation in
      10-inch diameter sea chest

  • The Argos 500 Forward Looking Sonar System is the solution for
    super yachts, military and government vessels, research vessels,
    cruise ships and mid-size unmanned vessels.
    It reliably detects underwater obstacles, shallows, and various
    “in-water” targets up to 500 meters in front of the vessel at operational
    speeds up to 20 knots.
    This technology guides ships safely through unknown waters and
    risky environments.

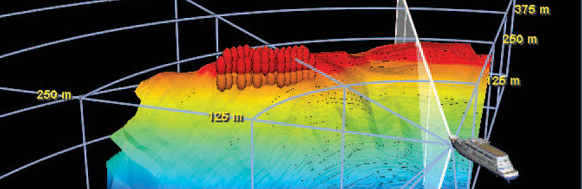

    The data is shown in a 3D display and overlaid on a nautical chart,
    and is updated in under 2 seconds.

  • The Argos 1000 Forward Looking Sonar system is the solution for
    cruise ships, large super yachts, research vessels, military and
    government ships and larger unmanned vessels.
    The most powerful in the series, reliably detects underwater
    obstacles, shallows, and various “in-water” targets up to 1000 meters
    in front of the vessel at operating speeds up to 25 knots.
    This powerful technology guides large ships safely through unknown
    waters and risky environments.
    The data is shown in a 3D display and overlaid on a nautical chart,
    and updates in less than 2 seconds.

Product brochure

Simrad S2016 Fish Finder Product description


  • The Simrad S2016 Fish Finder combines a single-channel Broadband
    Sounder™ module with CHIRP technology, 16-inch widescreen
    display for an extensive on-screen history, and intuitive keypad-driven
    operation. Robust and offering both bracket and flush-mount
    installation options, the S2016 was designed to meet the need for a
    dedicated fish finder display aboard coastal and offshore fishing
    vessels.

  • Dedicated fish-finder with integrated single-channel Broadband
    Sounder™ module and CHIRP technology.

  • HDMI output for mirrored secondary display – perfect for dual-helm
    installations or to duplicate the display at another bridge station.

  • Compatible with Simrad and Airmar transducers equipped with blue
    7-pin connectors.

Product brochure

Simrad S2009 Fish Finder Product description


  • The Simrad S2009 Fish Finder combines a single-channel Broadband
    Sounder™ module with CHIRP technology, 9-inch portrait display for
    maximum vertical detail, and intuitive keypad-driven operation. Robust
    yet compact with both bracket and flush-mount installation options,
    the S2009 was designed to meet the need for a dedicated fish finder
    display aboard coastal and offshore fishing vessels.

  • Dedicated fish-finder with integrated single-channel Broadband
    Sounder™ module and CHIRP technology.

  • Compatible with Simrad and Airmar transducers equipped with blue
    7-pin connectors.

Product brochure

S5100 Sounder with CHIRP Product description


  • The Simrad S5100 high-performance CHIRP echosounder module
    features three fully independent channels able to deliver simultaneous,
    high-resolution coverage across multiple depth ranges.

  • Advanced processing technology delivers noise-free clarity at all
    ranges, and maintains a solid bottom lock while travelling at speed.

  • Combine wide and narrow transducer beam-widths to reveal more fish,
    pinpoint small and tightly spaced fish, and identify thermoclines; or
    select specific CHIRP frequencies from 28 to 250 kHz to precisely
    target specific depths with clear target separation.

  • Maximum power output 3 kW RMS (transducer dependent).

  • Compatible with Simrad NSS evo3 and NSS evo2 multifunction
    displays, NSO evo2 systems, and S2000-series fish finders.

Product brochure

Simrad SonarHub Sounder Module Product description


  • The Simrad SonarHub sounder module provides an all-in-one solution
    to add StructureScan HD imaging and CHIRP broadband sonar
    capabilities to Simrad NSO evo2 navigation system..

  • Suitable for fishing vessels, patrol boats, and many other workboats,
    SonarHub makes it easier than ever to identify productive fishing
    areas, find anchorages, survey submerged structures, or rapidly
    eliminate search areas before sending divers into the water.

  • SonarHub provides ports for two transducers:
    - one broadband CHIRP (40-60kHz, 85-145kHz, 130-210kHz) or
    traditional narrowband (50kHz, 83kHz, 200kHz),
    - one StructureScan HD (455/800kHz).

  • Three built-in Ethernet ports allow connection to multiple Simrad
    multifunction displays or can be used to link other performance
    modules such as 4G Broadband Radar or WiFi-1 wireless networking.

Product brochure
