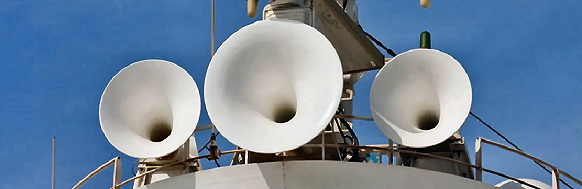

AIR HORNS


DHR Air horns Product description


  • The DHR Air horns are used for various type of vessels. Made of high
    quality materials like stainless steel and brass.

  • Products range:

    - DHR H400 Series for seagoing vessels up to 75m in length and
      Inland navigation vessels on German inland waterways.
      Approved according the international rules of Colreg ‘72.
      Frequency: 440Hz, Sound pressure: 130dB.

    - DHR H300 Series for Inland navigation vessels and small seagoing
      vessels. Use own compressor.
      Frequencies: 184-224Hz, Sound pressure: 122-132dB

    - DHR H200 Series for workboats, ferries, industrial signalling,
      security-alarm signalling and railway industry. Use own compressor.
      Frequencies: 307-660Hz, Sound pressure: 116-138dB.

    - DHR H100 Series for pleasure boats with a length from 12 to 20m.
      Frequencies: 387-478Hz, Sound pressure: 118-120dB.


Product brochure

TYFON Ship Whistle Product description




  • The TYFON ship whistle fulfils all current IMO and national authority
    regulations. A wide range of TYFON models is available for all types
    of the vessels. The TYFON whistle can be electronic or driven by air or electric.

  • For the vessels length more than 200m:

    - SUPERTYFON MKT 150/110
      Air driven whistle at 110 Hz. Typically installed aft.
      Delivered compleate with main and emergency air valves.
      Prepared for heating and lanyard.

    - ELECTRO TYFON MTX 150/130
      Electrical driven whistle at 130 Hz.
      Typically installed fore.
      Delivered complete with contactor box.


  • For the vessels length between 75-200m:

    - SUPERTYFON AT 150/200
      Air driven whistle at 200 Hz. Typically installed aft.
      Delivered compleate with main and emergency air valves.
      Prepared for heating and lanyard.

    - ELECTRO TYFON MT 150/130
      Electrical driven whistle at 130 Hz.
      Typically installed fore.
      Delivered complete with contactor box.


  • For the vessels length between 20-75m:

    - SUPERTYFON MKT 75/350E
      Air driven whistle at 350 Hz.
      Delivered compleate with main and emergency air valves.
      Prepared for heating and lanyard.

    - ELECTRONIC ETD 100/350
      Electronic whistle at 350 Hz.
      Delivered with amplifier and connected to 24 VDC.


Product brochure
