RADAR


Simrad Argus Radar Product description


  • The Simrad Argus radar is an IMO type approved radar for all types of SOLAS vessels.

  • The standard radar configuration includes 100 target ARPA,
    300 target AIS, performance monitor, gyro interface and built-in
    interswitch for dual radar installations.

  • 24" or 27" widescreen LCD TFT can be installed as table top, deck stand or flush mount into the bridge console.

  • This radar including 6, 9 and 12 foot antenna options and up-mast transceiver in 12kW and 25 kW (X-band) and 30 kW (S-band).

  • Type approved CAT1, CAT2 and CAT3 for Standard and CAT1 and CAT2 for High Speed Craft applications.

Product brochure

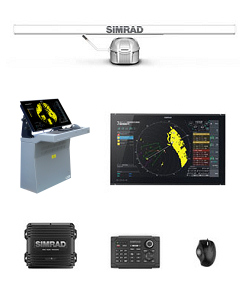

Simrad R5000 Radar Product description


  • The Simrad R5000 radar systems are available in a range of configurations to meet the requirement for an IMO type-approved X-Band and S-band radar system aboard CAT 1(H), CAT 2(H) and CAT3 SOLAS vessels.

  • 6, 9, and 12-foot open array antennas are available to suit a range of
    vessels.

  • 24" or 27" widescreen LCD TFT can be installed as table top, deck stand or flush mount into the bridge console.

  • Choose from a 12 or 25 kW up-mast or 25 kW down-mast transceiver (X-band) and 30 kW up-mast or down-mast transceiver (S-band).

  • Multiple R5000 processors can be networked together to create multi-
    radar systems, and to provide access to radar from multiple stations.
    Any networked station can control any connected radar system,
    offering both flexibility and redundancy.

Product brochure

Simrad R3016 Radar Control Unit Product description

  • The Simrad R3016 is Radar Control Unit with integrated 16-inch
    widescreen display for use on non-SOLAS vessels.

  • The R2009 meets IEC62252 (pending) small craft radar requirements when paired with one of the following radar antennas:

    - Simrad HALO-20 Pulse Compression Radar
    - Simrad HALO-20+ Pulse Compression Radar
    - Simrad HALO-24 Pulse Compression Radar
    - Simrad HALO-3 Pulse Compression Radar
    - Simrad HALO-4 Pulse Compression Radar
    - Simrad HALO-6 Pulse Compression Radar
    - Simrad TXL-10S-4 HD Digital Radar
    - Simrad TXL-10S-6 HD Digital Radar
    - Simrad TXL-25S-7 HD Digital Radar

  • Ideal for dual-helm vessels, a fully functional ‘clone’ station can be
    created with just an HDMI-connected display and Simrad O2000
    Controller.

Product brochure

Simrad R2009 Radar Control Unit Product description

  • The Simrad R2009 is Radar Control Unit with integrated 9-inch
    portrait display for use on non-SOLAS vessels.

  • The R2009 meets IEC62252 (pending) small craft radar requirements when paired with one of the following radar antennas:

    - Simrad HALO-20 Pulse Compression Radar
    - Simrad HALO-20+ Pulse Compression Radar
    - Simrad HALO-24 Pulse Compression Radar
    - Simrad HALO-3 Pulse Compression Radar
    - Simrad HALO-4 Pulse Compression Radar
    - Simrad HALO-6 Pulse Compression Radar
    - Simrad TXL-10S-4 HD Digital Radar
    - Simrad TXL-10S-6 HD Digital Radar
    - Simrad TXL-25S-7 HD Digital Radar

Product brochure

Simrad HALO
Pulse Compression Dome Radar Antenna
Product description

  • The Simrad HALO pulse compression dome radars deliver industry-
    leading 360-degree sweeps every second at close range, for the
    ultimate in collision avoidance of stationary and fast-moving targets.
    With high-quality short, mid and long-range detection, these feature-
    packed dome antennas ensure targets can be seen vividly - even in
    the toughest environmental conditions.

  • Available in following options:
    - HALO20, 20-inch, range to 24nm
    - HALO20+, 20-inch, range to 36nm
    - HALO24, 24-inch, range to 48nm

  • - Advanced pulse compression technology with beam sharpening
      (HALO20+, HALO24)
    - Simultaneous Dual Range operation (HALO20+, HALO24)
    - Ultra-fast 60 RPM operation (HALO20+, HALO24)
    - VelocityTrack™ Doppler technology for collision avoidance
      (HALO20+, HALO24)
    - Easy operation with harbour, offshore, weather, and bird modes
    - MARPA target tracking (up to 10 targets, 20 in dual range)
    - Ready instantly from standby

  • Ethernet connectivity, compatible with Simrad NSS/NSO multifunction displays.

Product brochure

Simrad HALO
Pulse Compression Radar Antenna
Product description

  • Combining the best characteristics of traditional pulse and FMCW
    broadband radar systems, Simrad Halo™ Radar uses Pulse
    Compression technology to provide an unprecedented mix of long
    and short detection range, high target definition, and minimal clutter
    in an affordable package for commercial operators.

  • Available in following options:
    - HALO-3, 3ft open array antenna, range to 48nm
    - HALO-4, 4ft open array antenna, range to 64nm
    - HALO-6, 6ft open array antenna, range to 72nm

  • High-speed 48RPM operation.

  • MARPA target tracking, up to 10 targets (20 with dual range).

  • Ethernet connectivity, compatible with Simrad NSS/NSO multifunction displays.

Product brochure

Simrad HD Digital Radar Antenna Product description

  • The Simrad HD Digital Radar scanners are designed to withstand
    sustained wind loads up to 100 knots, and features a long-life
    magnetron and brushless motor for maximum service life.

  • Availabale in following options:
    - 10kW transceiver, 4ft open array scanner, range to 64nm
    - 10kW transceiver, 6ft open array scanner, range to 72nm
    - 25kW transceiver, 7ft open array scanner, range to 96nm

  • Radar overlay on charts (requires heading sensor).

  • 10-target MARPA tracking (requires heading sensor).

  • Ethernet connectivity, compatible with Simrad NSS/NSO multifunction displays.

Product brochure
